Ultra-Stik Analogue Joystick for Xbox Adaptive Controller
£100 Ultrastik
£135 Ultrastik + 4 switch sockets
£155 Ultrastik + 8 switch sockets

A hand-built analogue joystick for PC, Xbox Adaptive Controllers and the HORI Flex.

Various options and upgrades include:

+£35 MERU cowbar
+£35 MERU mushroom top
+£35 Large Squishy ball top
+£20 Golf Ball top (various styles)
+£15 Bat top

+£10 STIFF spring version
+£35 Camera Mount
+£45 Aluminium box upgrade

+£110 GCM XAC multi-platform adapter
+POA Other accessories and tops.

Please e-mail for further information and for ordering details.

Ultrastik analogue joysticks in aluminium boxes with an Xbox Adaptive Controller.

  • Analogue hall-effect joystick for precise control.

  • Black or red ball top as standard (please specify if you have a preference). Shaft rotates freely. Ball top unscrews with applied pressure. N.B. The 30mm ball top can pose a choking hazard, so please request or use Loctite on the thread to help reduce this risk.

  • Switch socket options for PC users.

  • Can act as a Mouse and/or keyboard replacement on PC with free software such as JoyToKey - example video here.

  • A secure velcro base to secure the joystick is recommended.

  • Dimensions: 12cm high. Base 14.5 x 9.5cm.

  • Optional accessibility switch sockets (up to 8).

  • Quadstick compatible (requires an appropriate Ultrastick factory profile to be loaded in). Two Ultrasticks plugged into a XAC, daisy-chained to a Brook XE adapter, into the Quadstick USB-A socket is possible.

  • D.I.Y. guide for this analogue joystick with switches.

  • Joystick Tops: OneSwitch can supply various alternative tops to the standard 30mm M6 thread ball top. These include MERU cow-bar and mushroom tops (secured with a sideways 4mm DIN 916 M4 A4 grub-screw) and Seimitsu LB-30 to LB-49 (30mm-45mm diameter) bubble tops.

  • HORI Flex use may benefit from increasing the dead-zone to 15% within the Flex configuration software to avoid drift issues.

  • The joystick box is normally supplied in landscape orientation. Portrait orientation can be supplied upon request. Note the black plastic box will have some visual imperfections due to the manufacturing process.

  • An optional Game Control Mixer XAC adapter allows the joystick to act in a variety of ways, and work on many different games machines.

Many thanks to for permission to use their videos, and Lyn and Ruud van der Wel of NMA Gaming for use of the top photo.

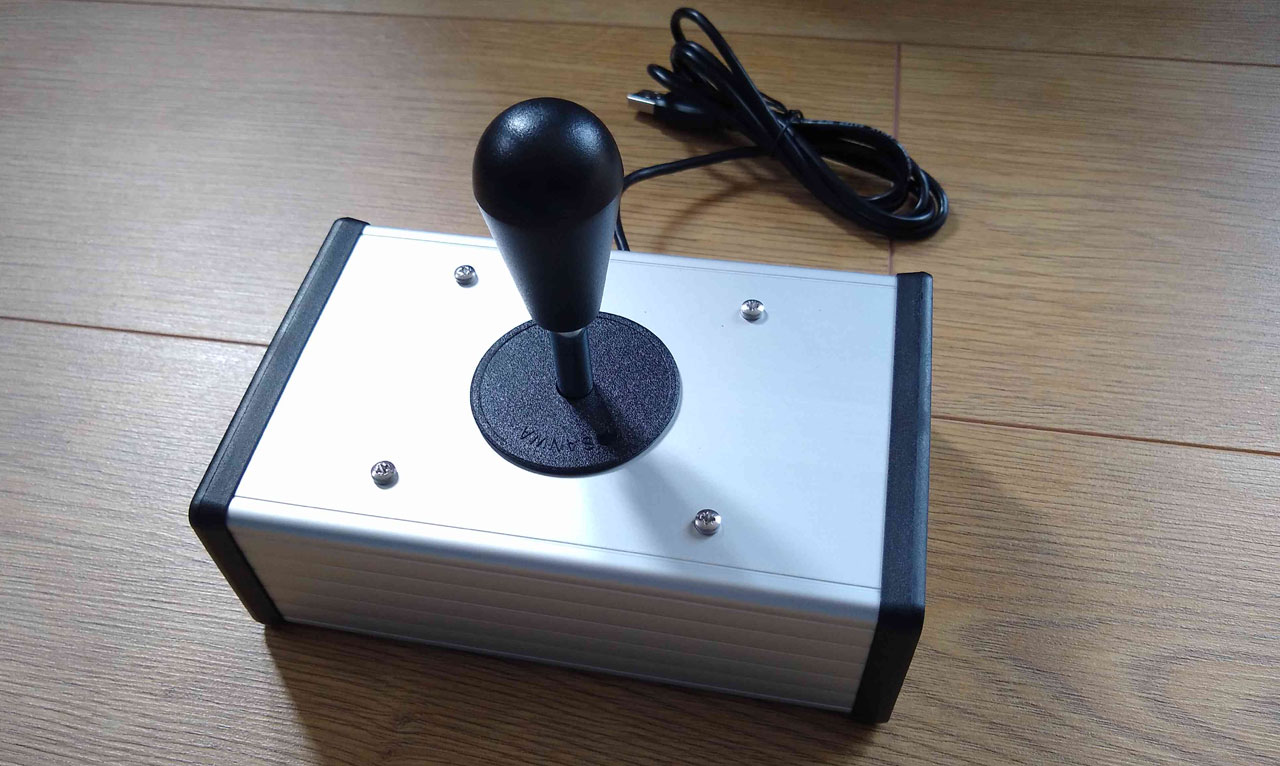

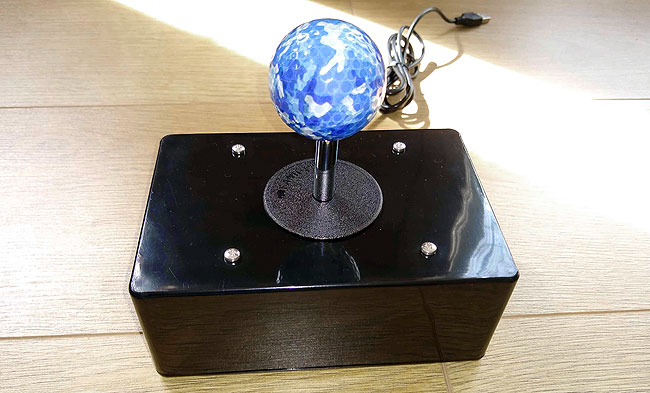

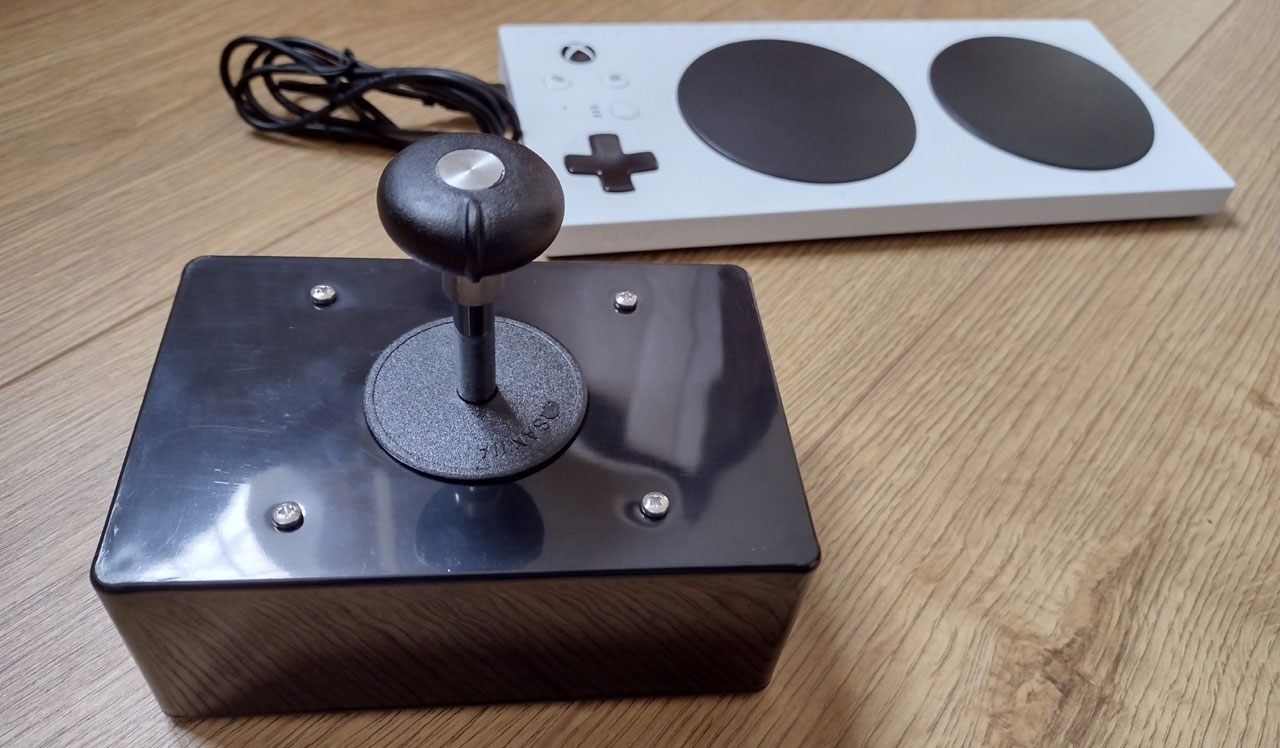

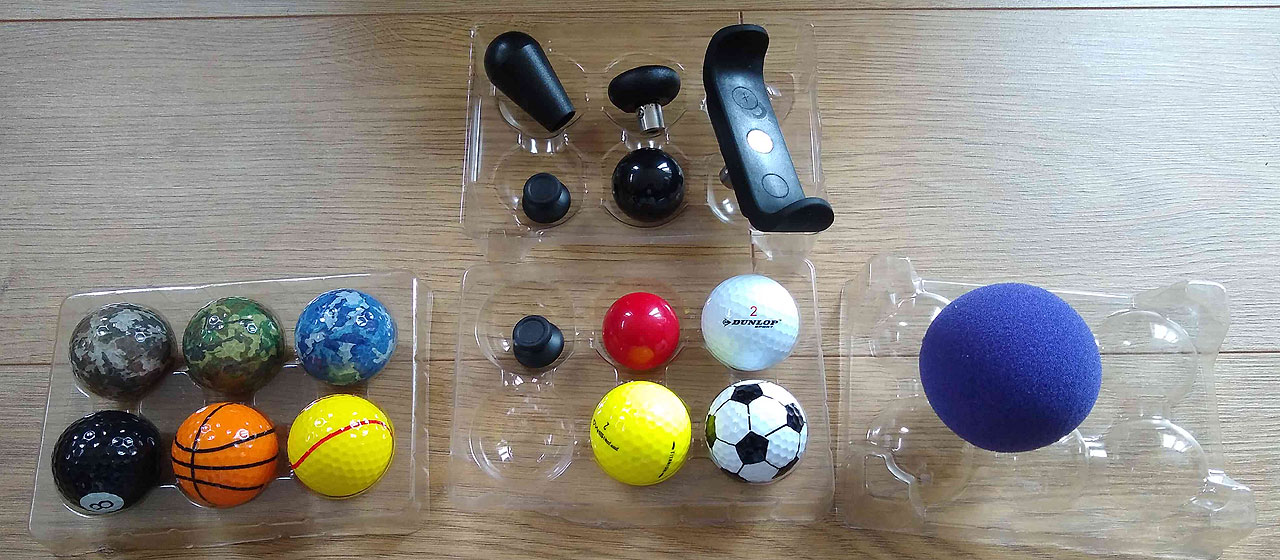

MERU cowbar extension for OneSwitch Ultrastick. Large Squidgy soft ball top for OneSwitch Ultrastick. MERU Mushroom top. Bat top extension for Ultrastick. Golf Ball extension for Ultrastik.Red Ball bubble tops on an Ultrastik joystick for the Xbox Adaptive Controller. Range of tops for XAC/PC compatible accessible Ultrastiks.
